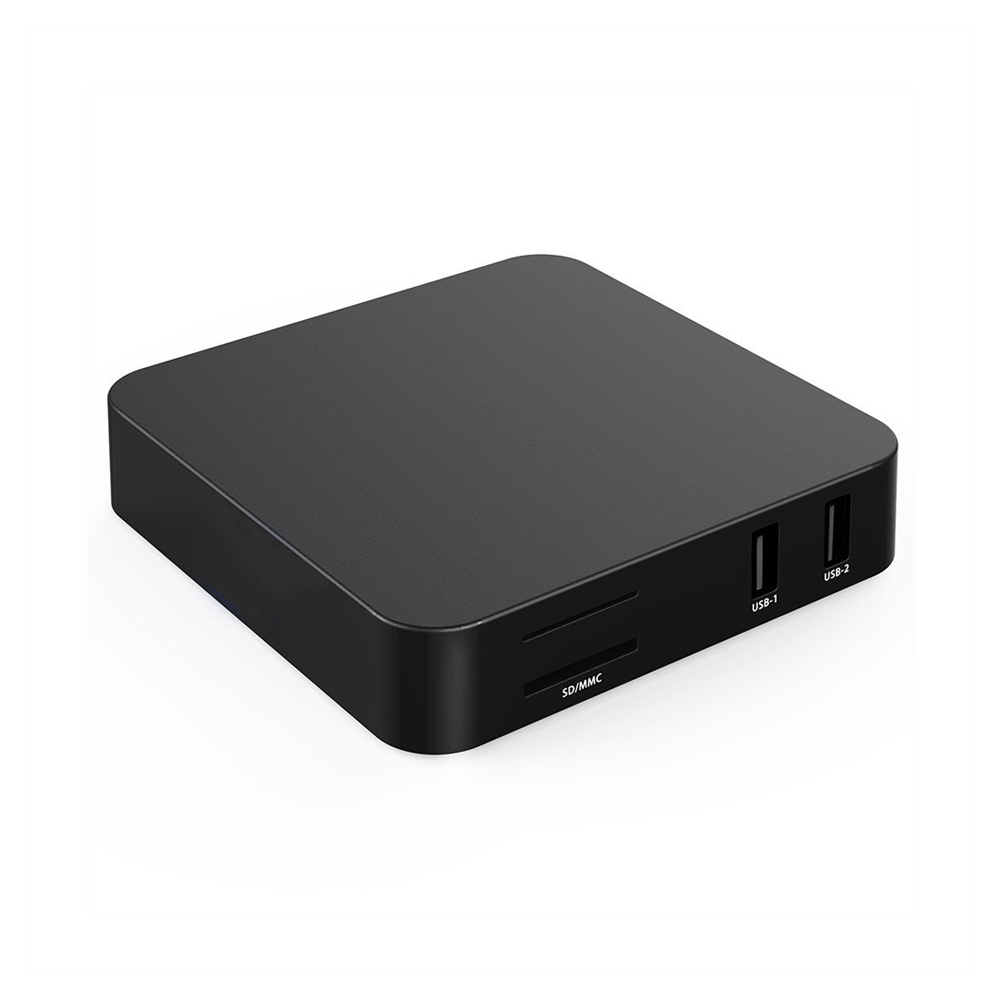

Unidad de Procesamiento Android 9

CPU

Amlogic S905X3 64-bit quad core ARM® CortexTM A55 CPU

GPU

G31TM MP2 GPU processor

Memory

DDR3: 2GB

Flash

eMMC:16GB

WiFi

IEEE 802.11 a/b/g/n/ac ; 2GB RAM+16GB ROM(WIFI 2.4G); 4GB RAM+32GB/64GB ROM(WIFI2.4G / 5G & Bluetooth,WIFI MIMO)

Bluetooth

BT ; Support Voice Remote

Moudle

Plastic : Black Color

1*HDMI

HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output

I/O

1*AV OUT

480i/576i standard definition output

2*USB

1 * USB 3.0 ; 1*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface;Support 10/100M/1000M

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A;

Software

OS

Android 9.0

Video

 Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
 Support multi-video decoder up to 4x1080P@60fps
 Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
 Video/Picture Decoding
– VP9 Profile-2 up to 8Kx4K@24 fps
– H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
– AVS2-P2 Profile up to 8Kx4K@24 fps
– H.264 AVC HP@L5.1 up to 4Kx2K@30fps
– MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
– WMV/VC-1 SP/MP/AP up to 1080P@60fps
– AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
– MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
– RealVideo 8/9/10 up to 1080P@60fps
– Multiple language and multiple format sub-title video support
– MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
– Supports JPEG thumbnail, scaling, rotation and transition effects

Audio

– Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-

mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8


HD JPEG、BMP、GIF、PNG、TIF

Language English French German Spanish Italian etc multilateral languages

Appliactions

Online

Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.

Apps

Apps download freely form android market、amazon app store etc.

Medium

Local Media playback,Support HDD, U Disck ,TF Card .

Talk online

Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc

Others

Support Email,office suit etc.

Packing

Product

105*105*28(MM)

Qty per unit

1pc

Unit packing:

205*140*50(MM)

Unit packing

400KG

Qty per export

20PCS

Export carton

42*27*30.5CM

Export carton

8.6KG

Accessories :

1、HDMI cable *1

2、IR Remote *1

3、User Manual *1

4、Package box *1

5、Power adapter *1
